Call Button System

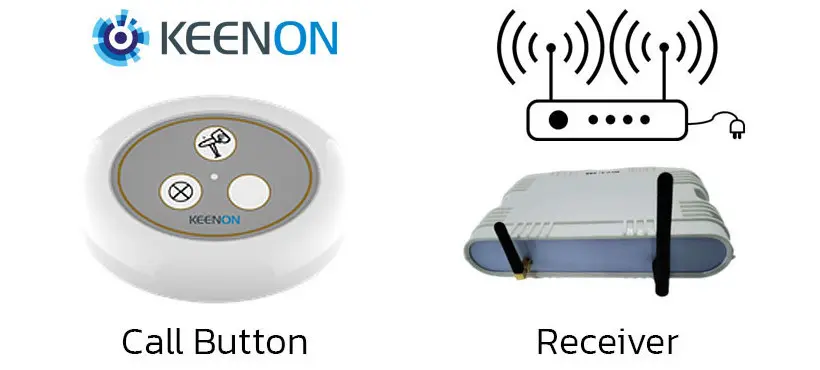

The call button system facilitates customer requests for robot assistance by pressing a button. It consists of three components: the call button, receiver, and optional bridge.
Customers initiate a request by pressing the call button, which sends a signal to the receiver. The receiver interprets the signal as a request and triggers the necessary actions to summon the robot. In larger environments, an optional bridge extends the transmission distance between the call button and receiver. Upon receiving the request, the robot navigates to the predetermined target point and interacts with the customer or provides the required service.
Key Features
- Internet is not required to build the connection.
- Two buttons on one call button to bind robots with different services.
| Brand | Keenon |
| Dimensions (WxDxH) | 22 x 13.5 x 4.8cm |
| Weight | 333g |
| Number of Buttons | 5 |
| Number of Pairing with call buttons | 100 |
| Transmission Distance | 50m(for space without walls), 25m(for single wall) |
| Number of Antennas | 2 |
